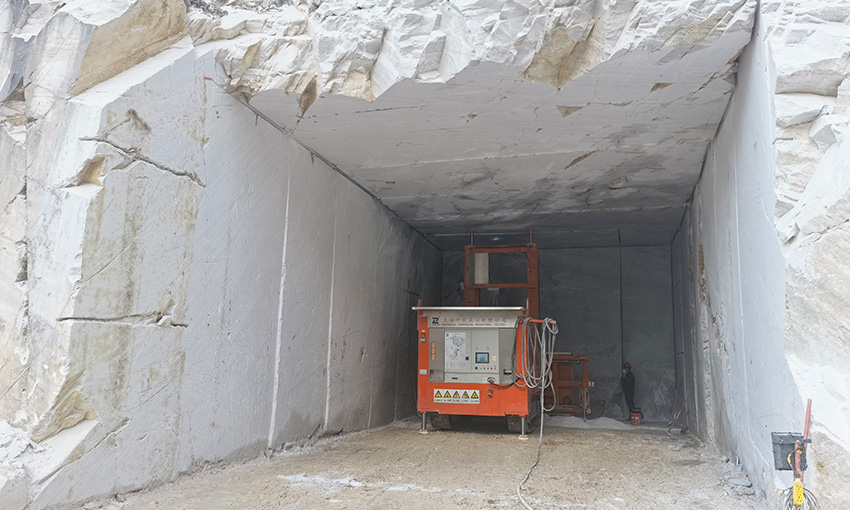

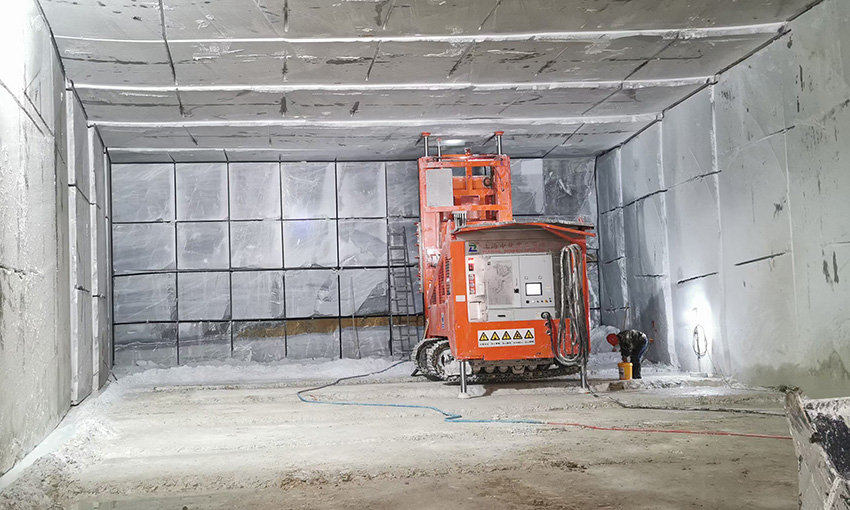

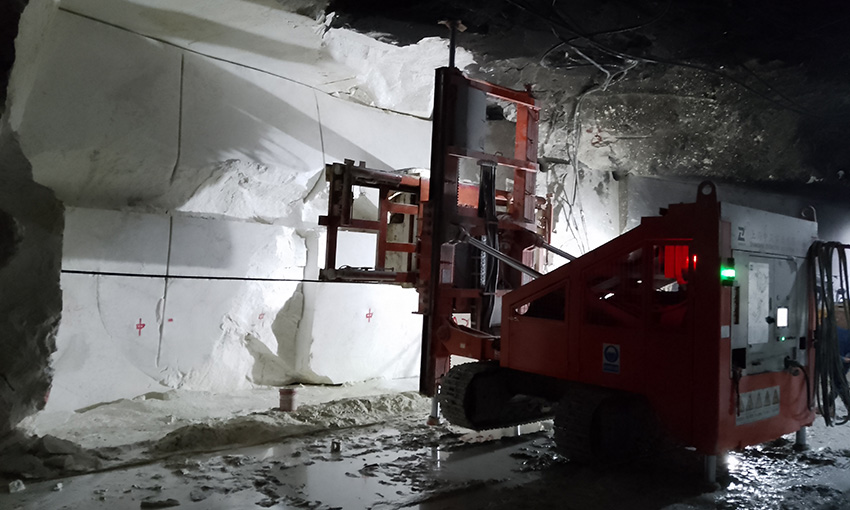

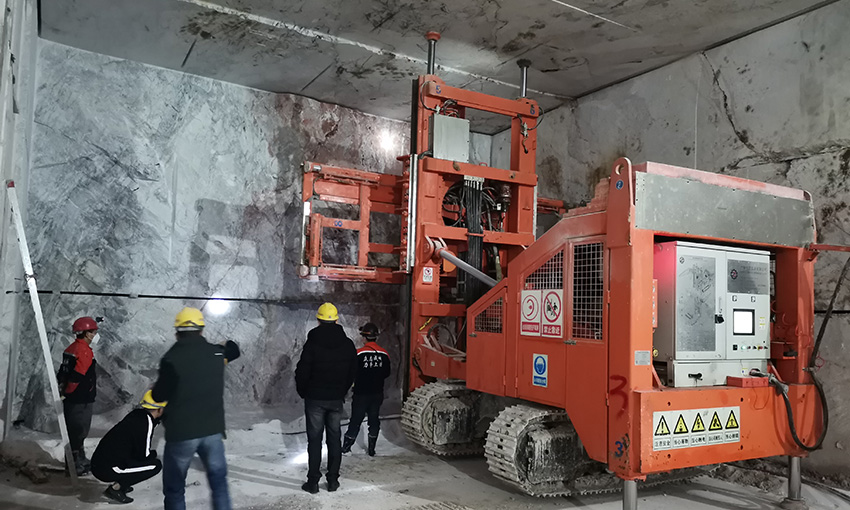

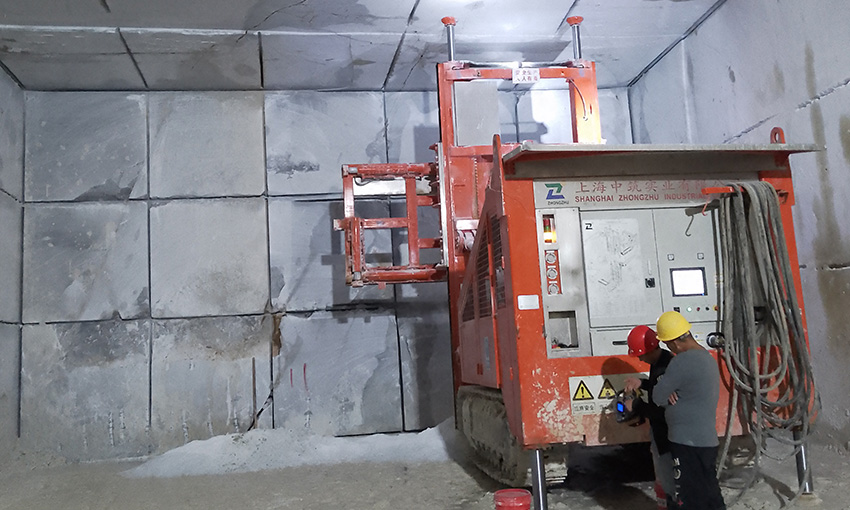

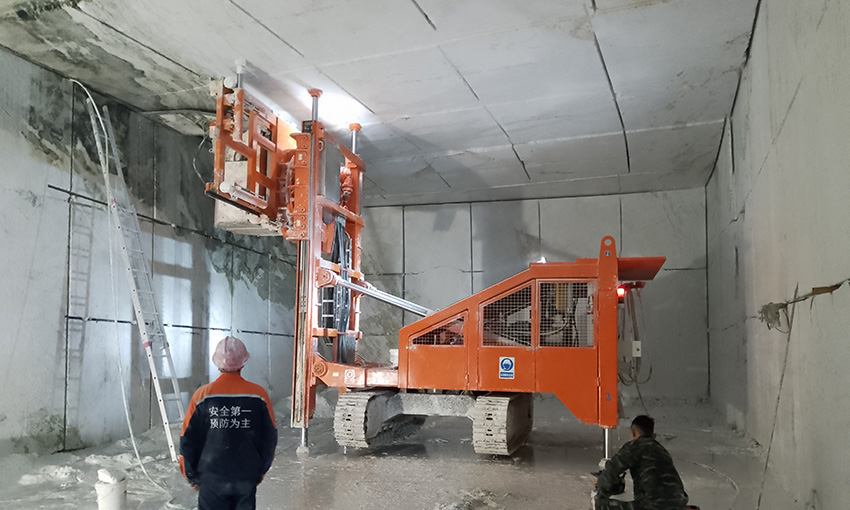

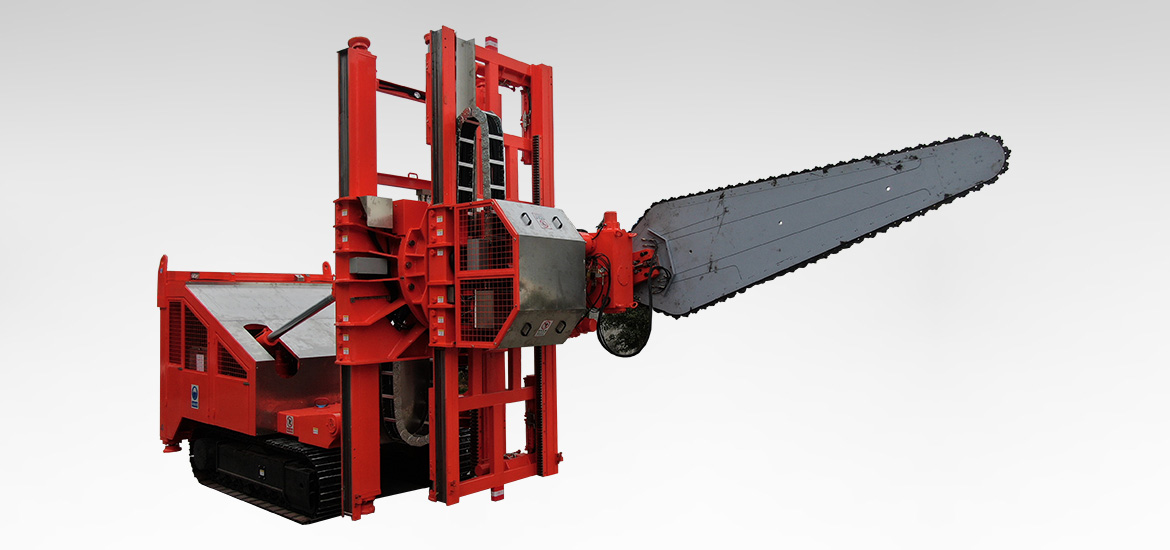

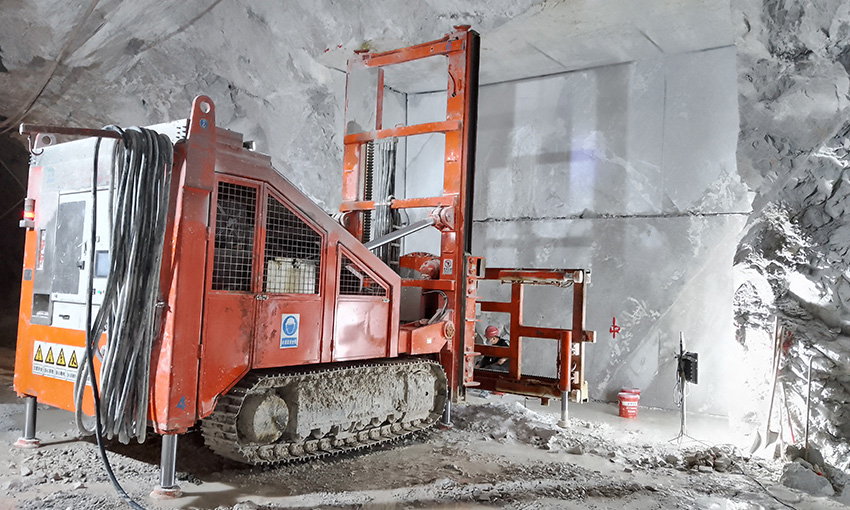

Tunnel Mining Chain Saw CS3000
Plus model have the following functions
Vertical cut of the back of the wall
Horizontal cut of the back of the wall
Vertical cut of the ground
Vertical cut of the back of the wall
Horizontal cut of the back of the wall
Vertical cut of the ground
Product parameters
| Model | DC-CS3000 | DC-CS3000 PLUS |
| Maximum cut height | 5.65m | 5.65m |
| Maximum cut depth | 3m | 3m |
| Tunnel size height * width(m) | 5.5m * 6-14m | 5.5m * 6-14m |
| Cut kerf width(mm) | 40 | 40 |
| Total power | 75kW | 75kW |
| Machine weight | 36 tons | 36 tons |
| Machine dimensions(cm) | 690*250*320 | 690*250*320 |
| Cutting function | 4 directions | 6 directions |
