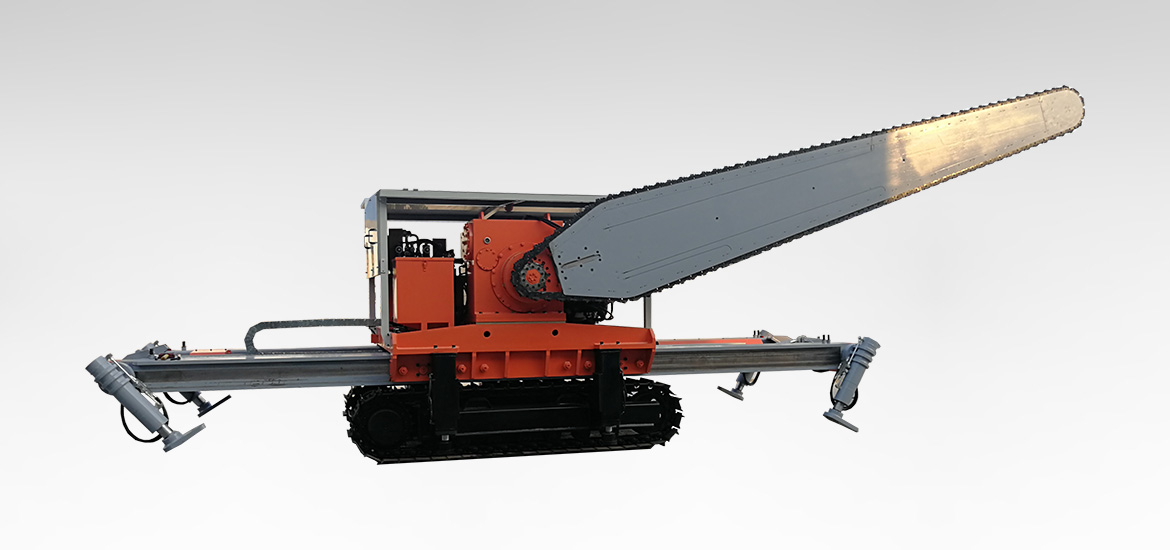

Crawler Type Chain Saw with Horizontal-rail
The machine can move freely on its caterpillar track,independent of any other hoist machinery.

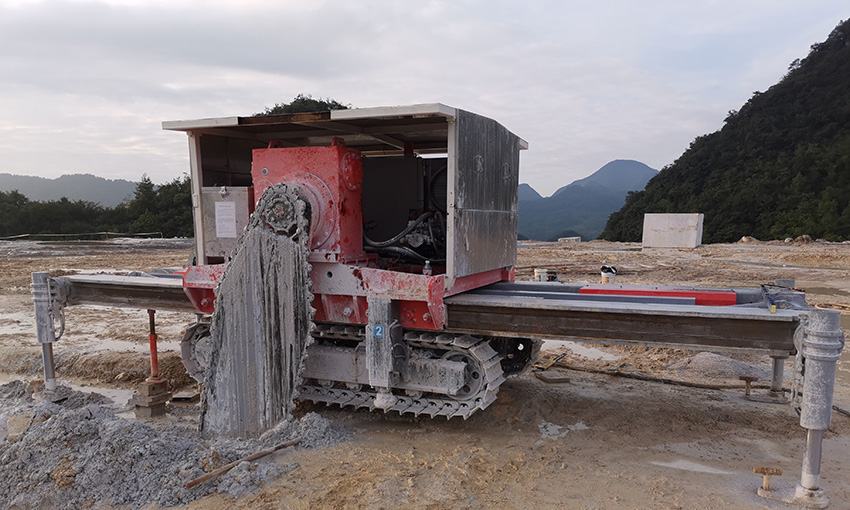

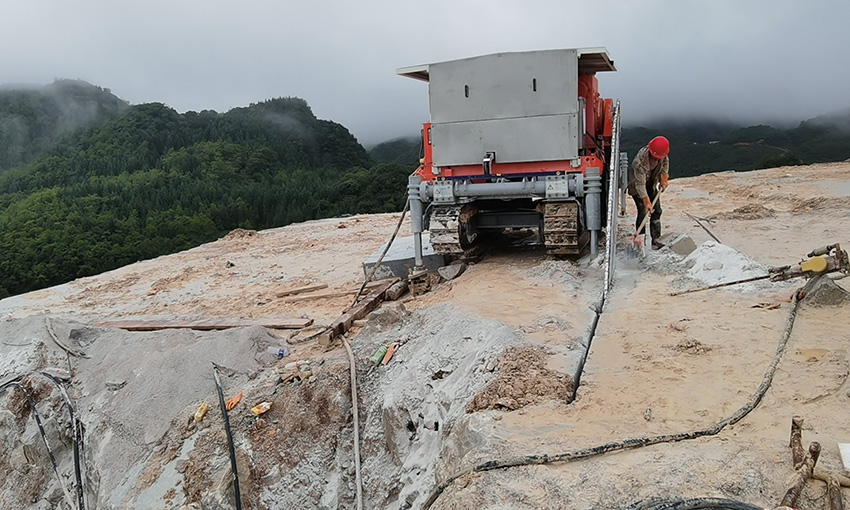

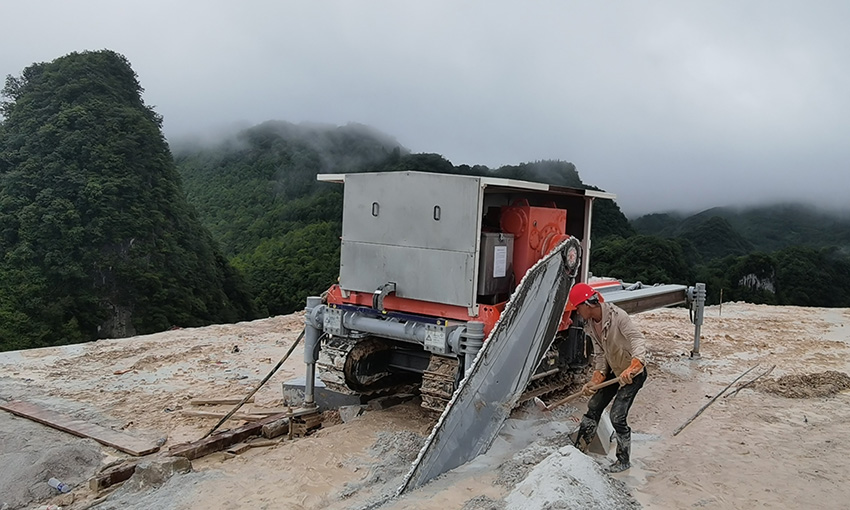

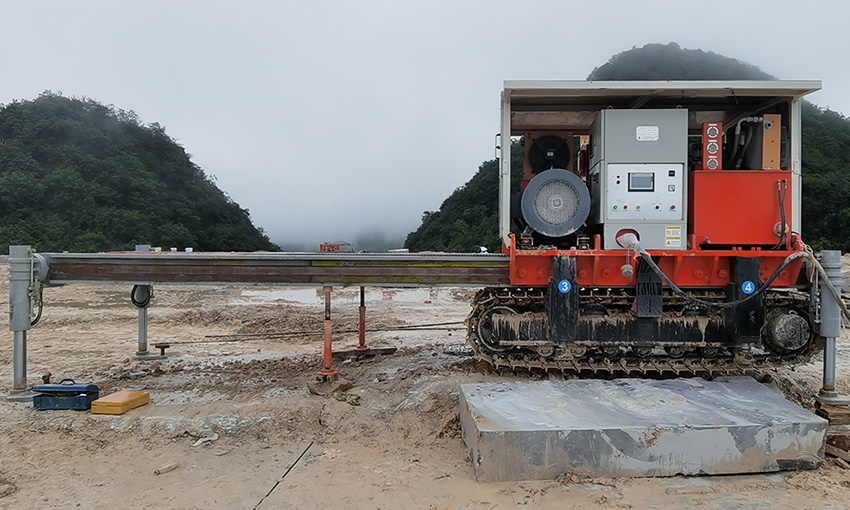

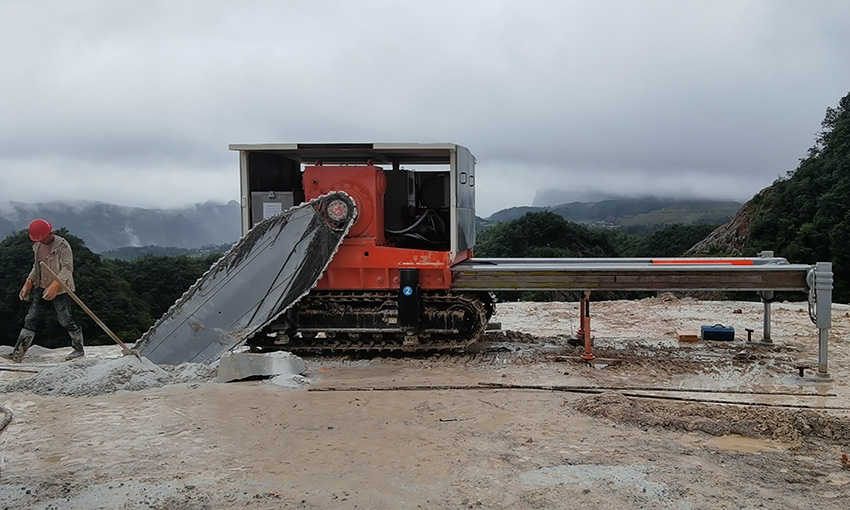

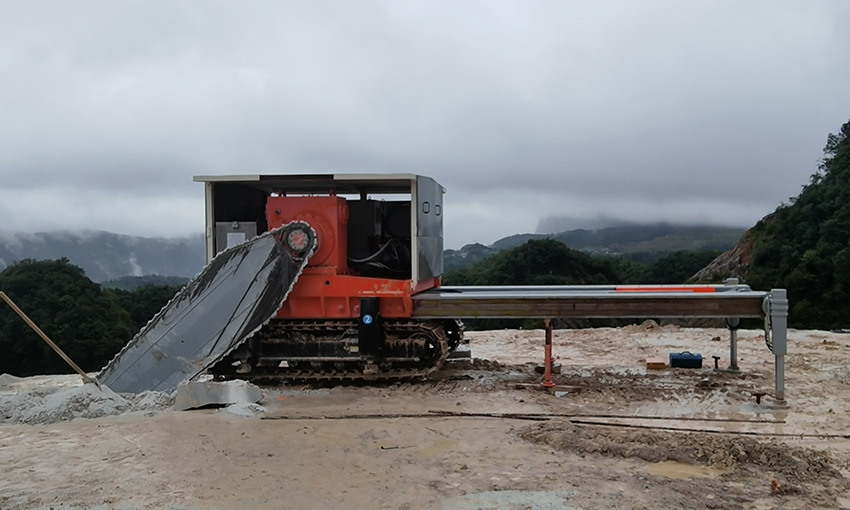

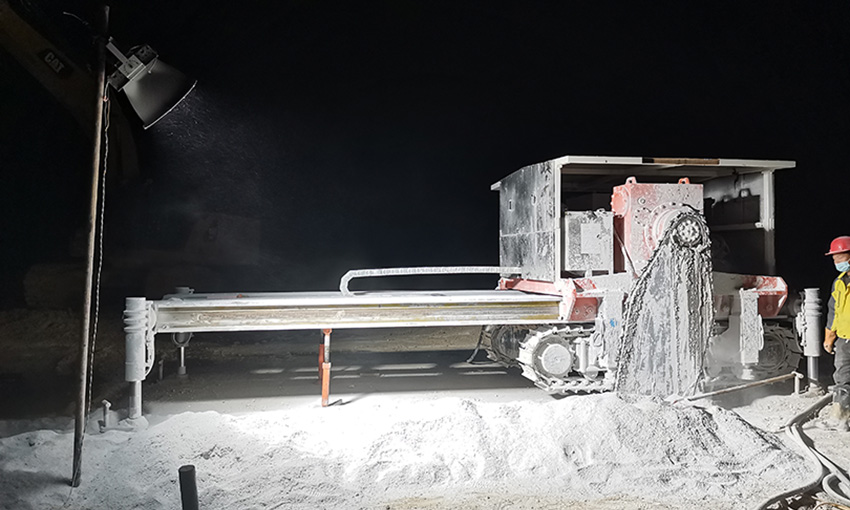

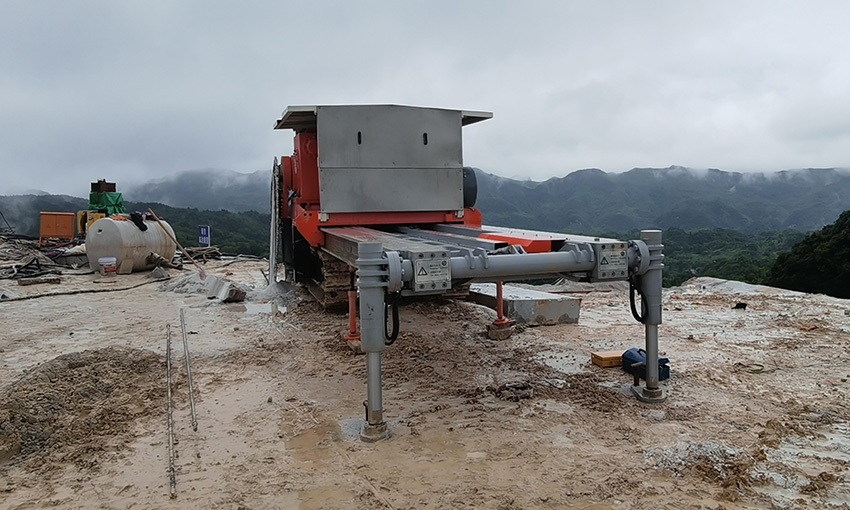

The machine is supported by the four cylinders and moves on its horizontal rail in cutting process. It is suitable for open-air quarries .
The machine is operated by a wireless controller and is friendly to operators .
The machine is supported by the four cylinders and moves on its horizontal rail in cutting process. It is suitable for open-air quarries .
The machine is operated by a wireless controller and is friendly to operators .
Product parameters
Model | LD-CS2500-P | LD-CS4000-P |
Vertical cut | √ | √ |
Horizontal cut | X | X |
Maximum cut depth | 2.5 meters | 4 meters |
Cut width | 40mm | 40mm |
Total power | 55kW | 75kW |
Machine weight | 13 tons | 14.5 tons |
Machine dimensions(cm) | 650x225x210 | 650x225x210 |
